1mw 5mw 10mw 20mw Fiber Optic Testing Tools Visual Fault Finder Pen type 650nm ± 10nm

Podstawowe informacje
Place of Origin: Guangdong, China (Mainland)
Nazwa handlowa: OPTFOCUS
Orzecznictwo: CCC
Model Number: OFS-6105P-Series
Minimum Order Quantity: 5 pcs
Cena: negotiated
Packaging Details: Dimension (mm) 25(D) * 180 (L)
Delivery Time: 5-8 Working days after received the payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 5000per month

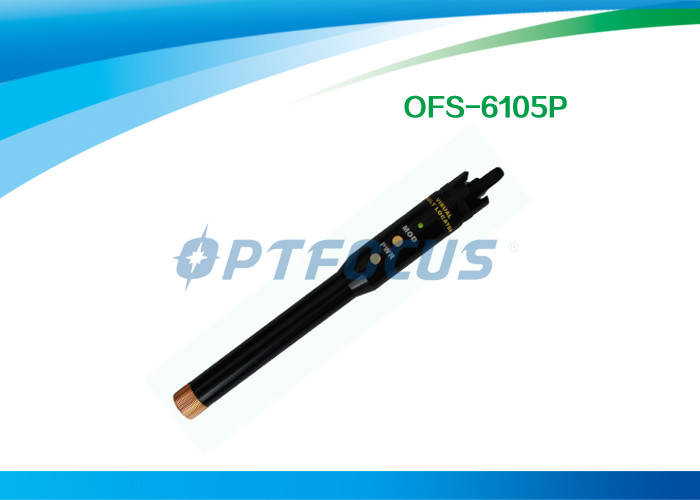

1mw 5mw 10mw 20mw Fiber Optic Testing Tools Visual Fault Finder Pen type 650nm ± 10nm



The OFS-6105 Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR dead zone

End-to-end visual fiber identification



Features



* 2.5mm universal connector, for 1.25mm connectors

   FC (Male)-LC (Female) convertor can be provided on requests.

* Operates either in CW or Pulsed

* Constant output power

* Lower Battery warning

* Long battery life (up to 60 hours)

* Crash-proof and dust-proof design for laser head

* Laser case ground design prevents ESD damage

* Burning testing to ensure the reliability.

* Portable and rugged, easy to use

* Guarantee to CE standards include EMC, EMI, ROHS



Specifications



Type

OFS-6105 Pen-type Visual Fault Finder

Central Wavelength

650nm±10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power

Optional choice for 1mw, 10mw on actual needs

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2  AA alkaline batteries

Battery Operating Time

650nm@1mw ≥65hour

650nm@10mw≥15hour

Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature

-10~+45 (℃)

Storage Temperature

-40~+70 (℃)

Dimension (mm)

¢15X180

Weight

120g(Without battery)



Remark: Colors can be customized on request when meets certain qty!



Standard Packages



MODEL

INCLUDES

OFS-6105 P

Main Unit (Original color), 2pcs Alkaline battery, User Manual, Cotton swabs and Soft Carrying case.
