| Miejsce pochodzenia: | Guangdong, Chiny |
|---|---|
| Nazwa handlowa: | OPTFOCUS |
| Orzecznictwo: | ISO9001 ANATEL CE |
| Numer modelu: | OFSX624-VWU |
| Minimalne zamówienie: | 1 kawałek |
| Cena: | USD15-25/UNIT EXW CHINA |
| Szczegóły pakowania: | 40 sztuk / pudełko |
| Czas dostawy: | 10 dni roboczych |
| Zasady płatności: | L / C, D / A, T / T, D / P, Western Union, MoneyGram |
| Możliwość Supply: | 50000 sztuk na miesiąc |
| Interfejs up-link: | 1 Interfejs XPON ， Pojedynczy światłowód SC jednomodowy RX 2,488 Gb / si TX 1,244 Gb / s (GPON), RX | Tryb: | XPON |
|---|---|---|---|
| Moc optyczna: | 0 ~ 4 dBm | Wrażliwość: | -28 dBm |
| Wskaźnik LED: | 9 szt | temperatura robocza: | -5 ～ + 55 ℃ |
| wymiar （mm）: | 188 * 125 * 35 mm （mainframe） | Gwarancja: | 1 rok |
| Słowa kluczowe: | zte f660 ont |
Wholesale ftth 4lan tel with big covering area wifi ONU with wifi hybird GEPON similar to zte f660 ont

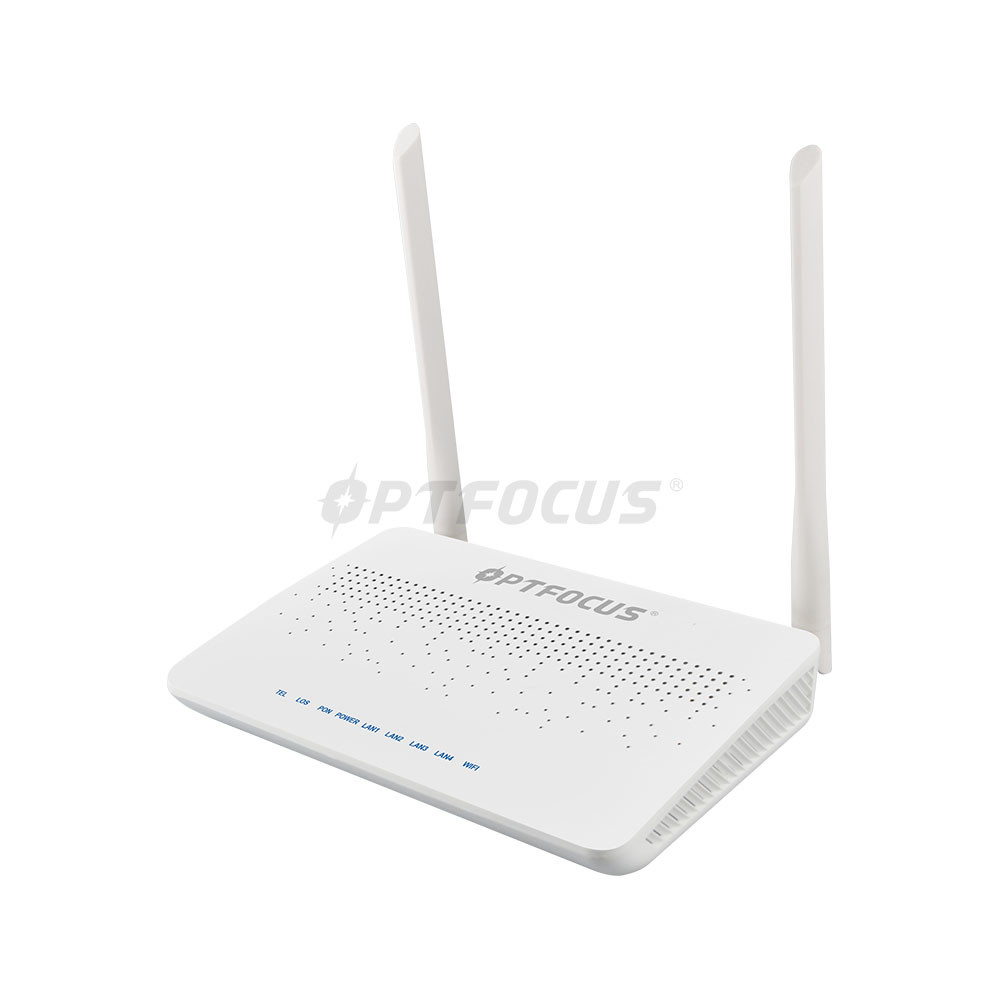

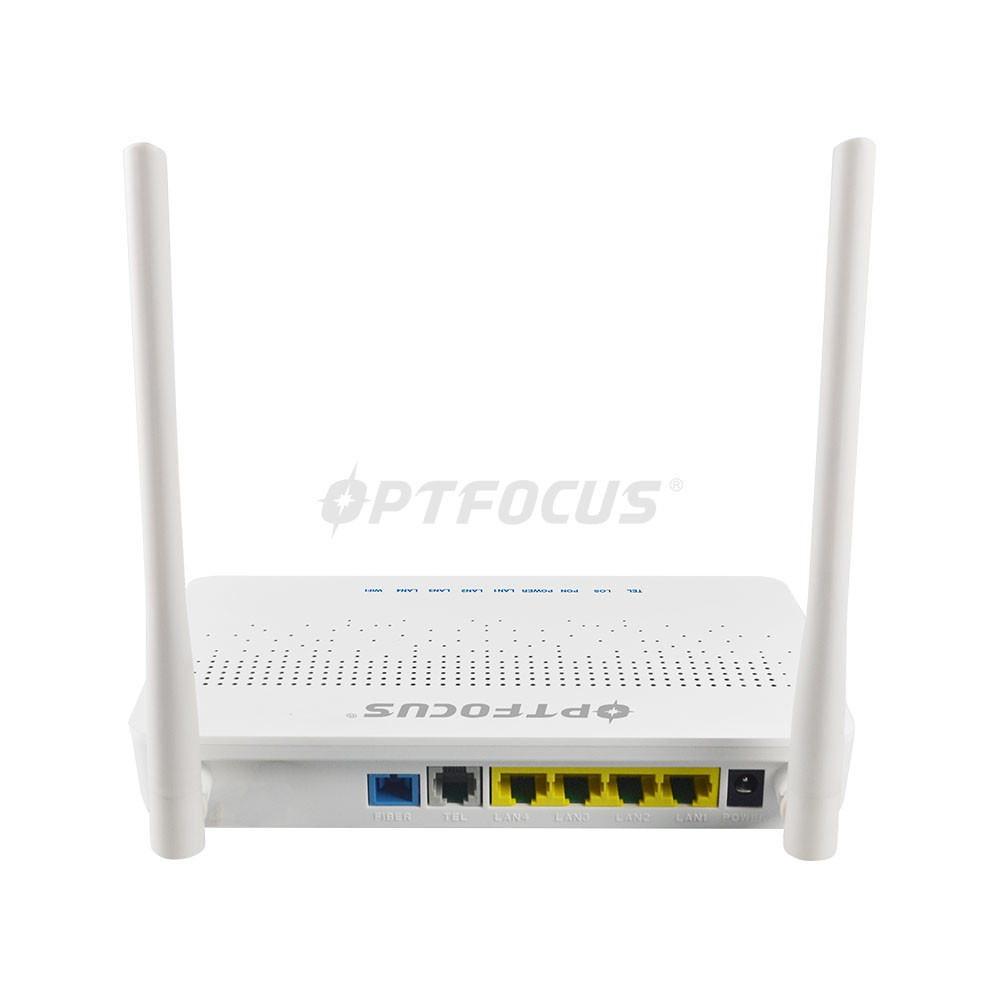

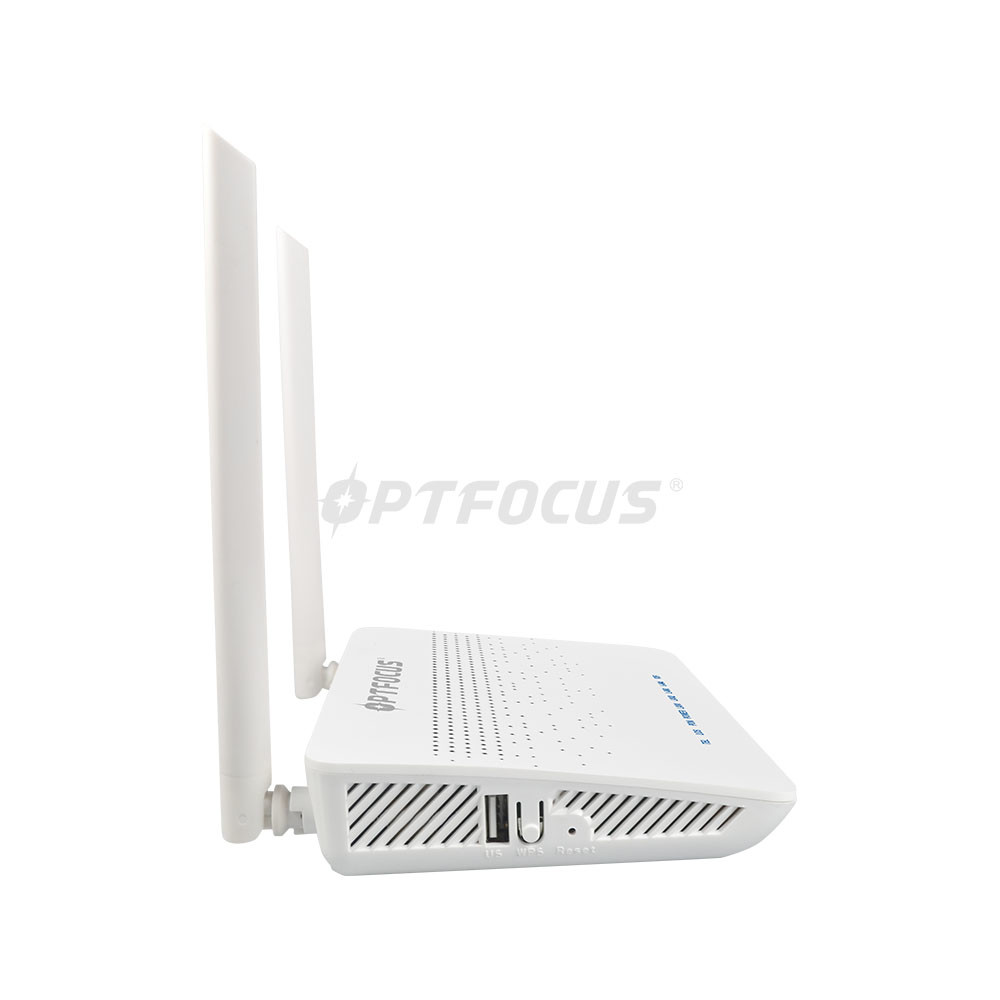

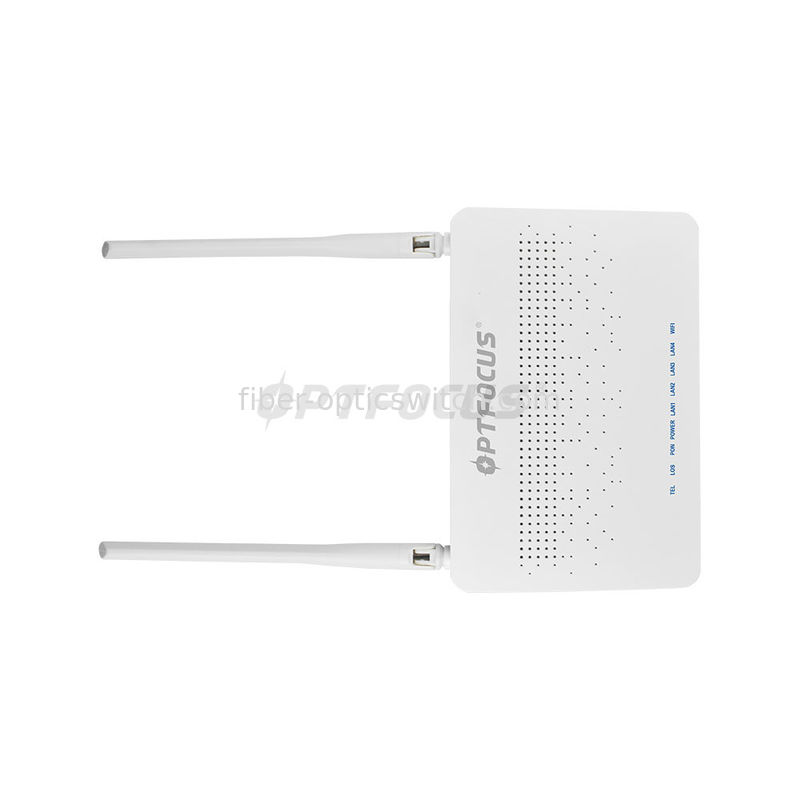

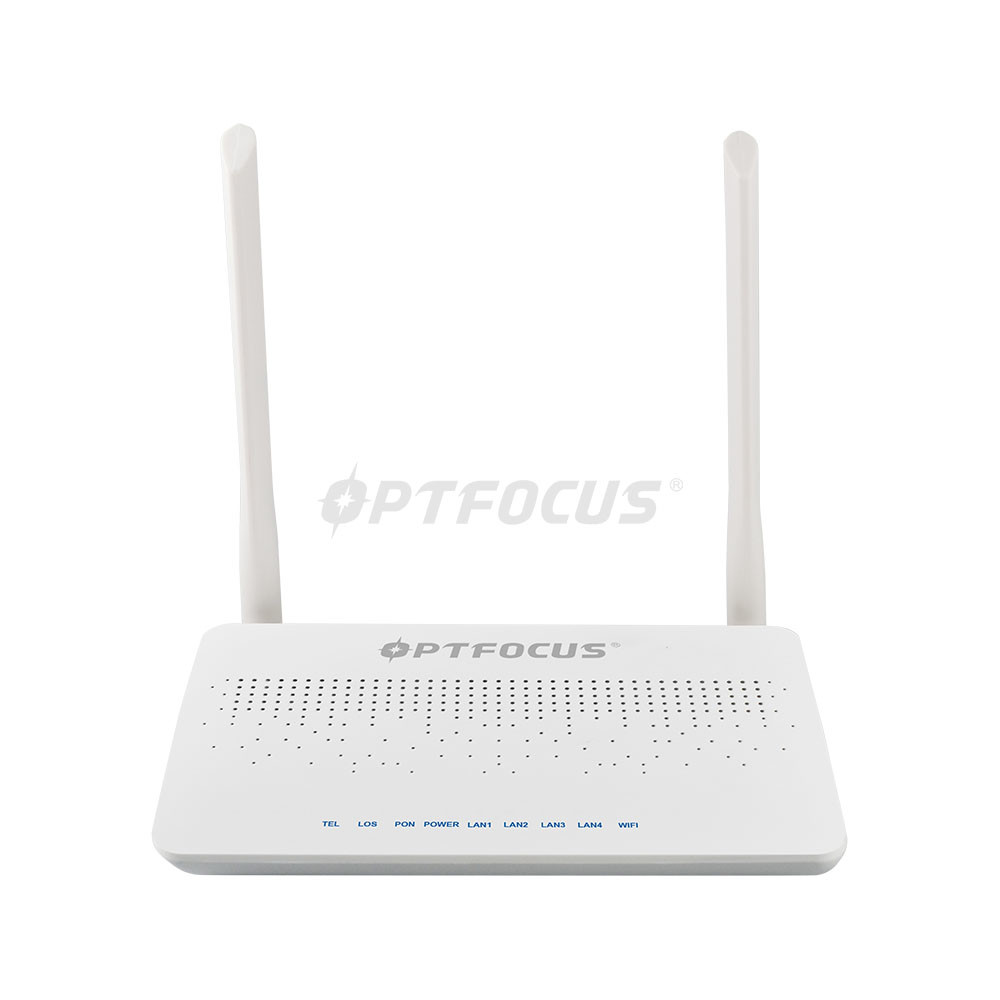

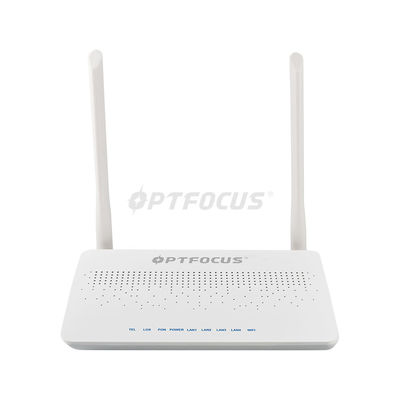

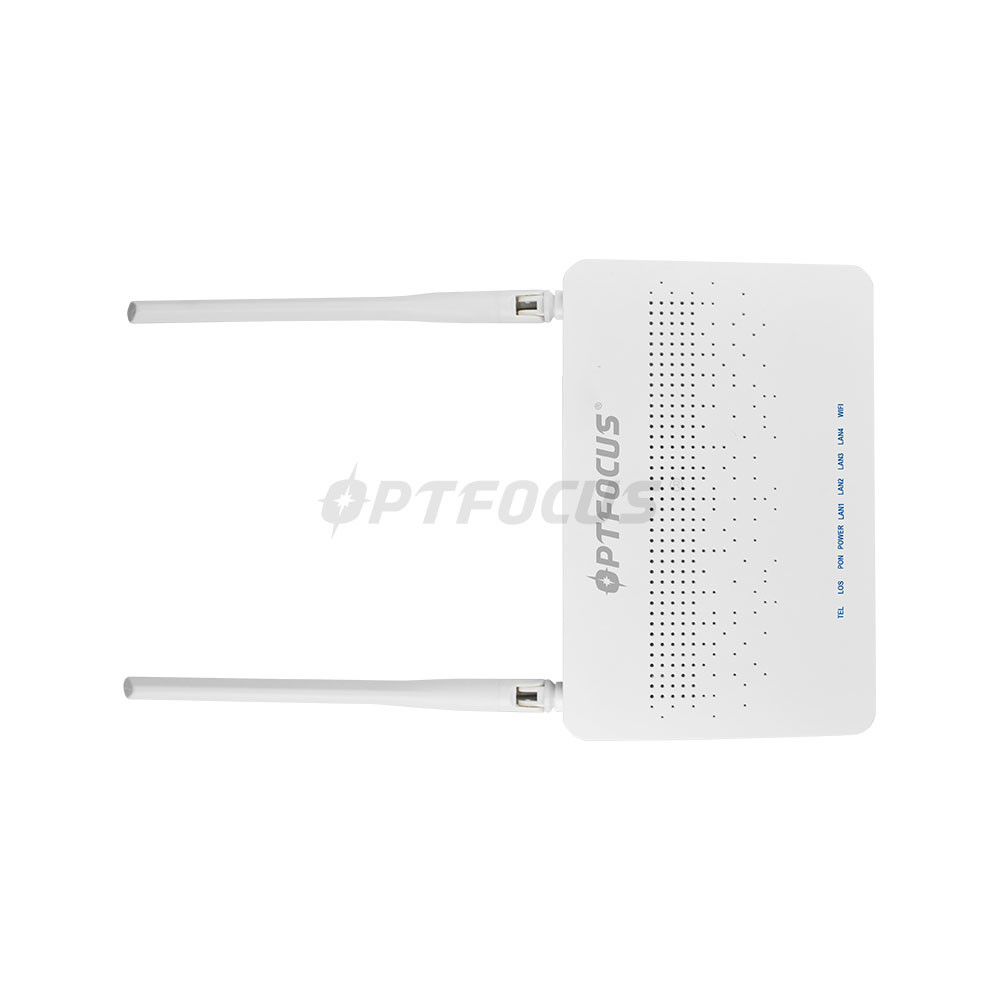

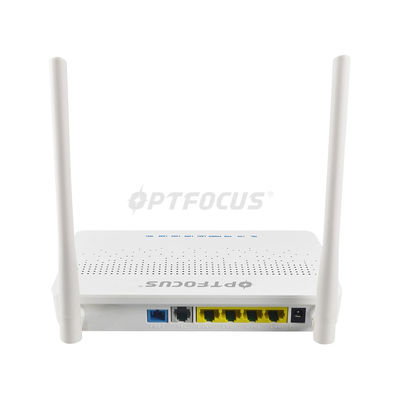

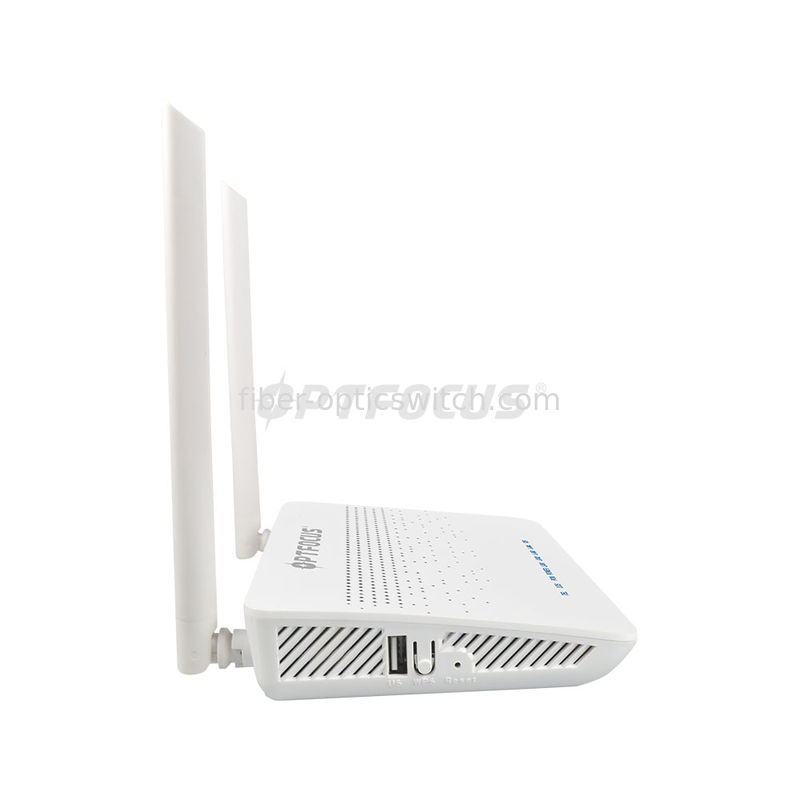

OFSX624-VWU
1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution
Description:
OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
BASIC CHARACTERISTICS:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
WIFI CHARACTERISTICS:
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
VOIP TECHNICAL FEATURE:
| Tech features | description |
| Voltage and Current Monitoring | The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
