| Miejsce pochodzenia: | Chiny |
|---|---|
| Nazwa handlowa: | OPTFOCUS |
| Orzecznictwo: | CE |
| Numer modelu: | OFSX624-CWU |
| Minimalne zamówienie: | 100 szt |
| Cena: | USD 27.5~31 / piece |
| Szczegóły pakowania: | 1 sztuka / pudełko |
| Czas dostawy: | 5-10 dni, zależą od ilości |
| Zasady płatności: | L / C, T / T, Western Union, Paypal i tak dalej |
| Możliwość Supply: | 50000 sztuk / miesiąc |
| Złącze światłowodowe: | Złącze SC / UPC (opcjonalnie SC / APC) | Interfejs danych łącza w dół: | Interfejs Ethernet 3 * 10 / 100Mbps i 1 * 10/100 / 1000M z automatyczną negocjacją, interfejs RJ45 |
|---|---|---|---|
| WiFi: | 2,4G | Port CATV: | tak |
| temperatura robocza: | -5 ～ + 55 ℃ | wymiar: | 188 * 125 * 35 mm |

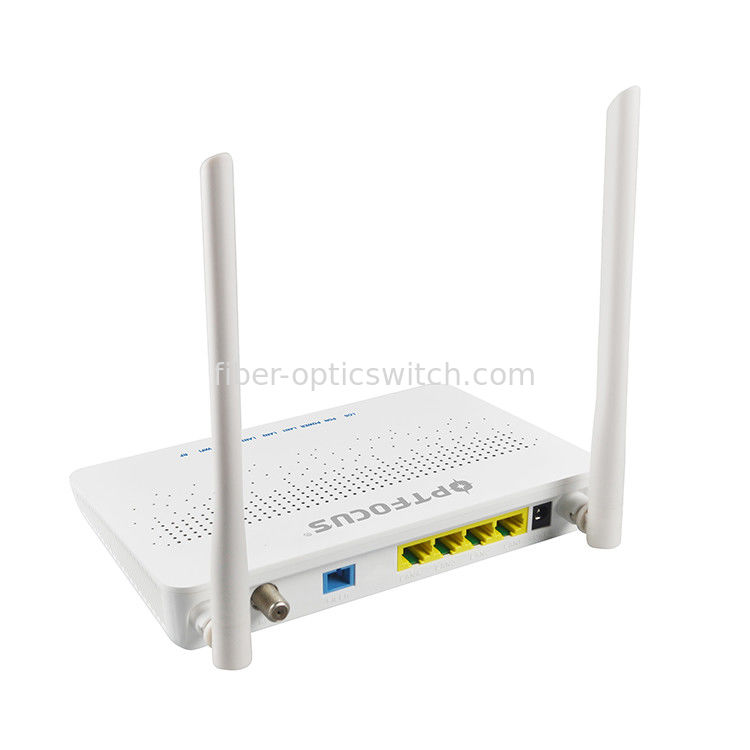

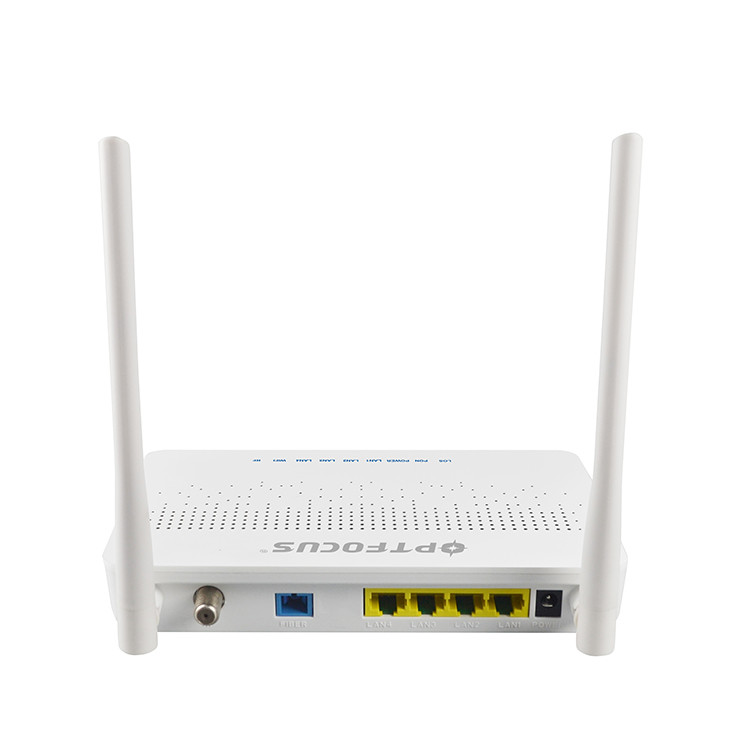

Hot selling RF CATV ONU 4LAN ethernet port dual mode wifi onu epon gpon
Description:
1GE+3FE Ethernet ports with Wifi USB WDM CATV XPON ONU for FTTH solution
OFSX624-CWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU -T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490/1550nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) |
188*125*35mm(mainframe) |
| Weight | 0.6Kg(mainframe) |
WIFI characteristics
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
CATV Technical features
| Tech features | description |
| Optical wavelength | 1540~1560nm |
| Optical input range | 0~-15 DBm |
| Optical return loss | ≥45 DB |
| Bandwidth | 45~1000 MHz |
| Flatness | 士 1 DB |
| RF output level | ≥72 dBuv |
| AGC control range | 0~-14 DBm |
| RF Output return loss | ≥14 DB |
| Output impedance | 75Ω |
| CNR | ≥50 DB |
| CTB | ≥60 DB |
| CSO | ≥60 DB |
Solutions
Related products
FAQ
1. Can i have a sample before bulk order?
Yes, we support to provide sample for you to test our product quality before your bulk order.
2. Can I use our own logo and label?
Yes, we could provide OEM service and manufacture the products with your own label.
3. What is the delivery time?
For usual products. We keep the stock, could send 1-3 days after the PO. For large quantities and special products, please check the delivery time with our sales representative.
