| Miejsce pochodzenia: | Chiny |
|---|---|
| Nazwa handlowa: | OPTFOCUS |
| Orzecznictwo: | CE |
| Numer modelu: | 16-portowy przełącznik poe |
| Minimalne zamówienie: | 1 |
| Cena: | USD13 per Unit |
| Szczegóły pakowania: | Pudełko/Karton |
| Czas dostawy: | 7 dni |
| Zasady płatności: | T/T, Western Union |
| Możliwość Supply: | 70000 miesięcznie |
| Nazwa produktu: | Przełącznik POE | Dystans: | 20km |
|---|---|---|---|
| Logo: | Dostosowane | ZŁĄCZE: | SC,LC |
| moq: | 1 | Numer modelu: | OFS-PE-GT2DT16 |
| Miejsce pochodzenia: | Chiny | Czas gwarancji: | 1 rok |
| Marka: | OPFOCUS |

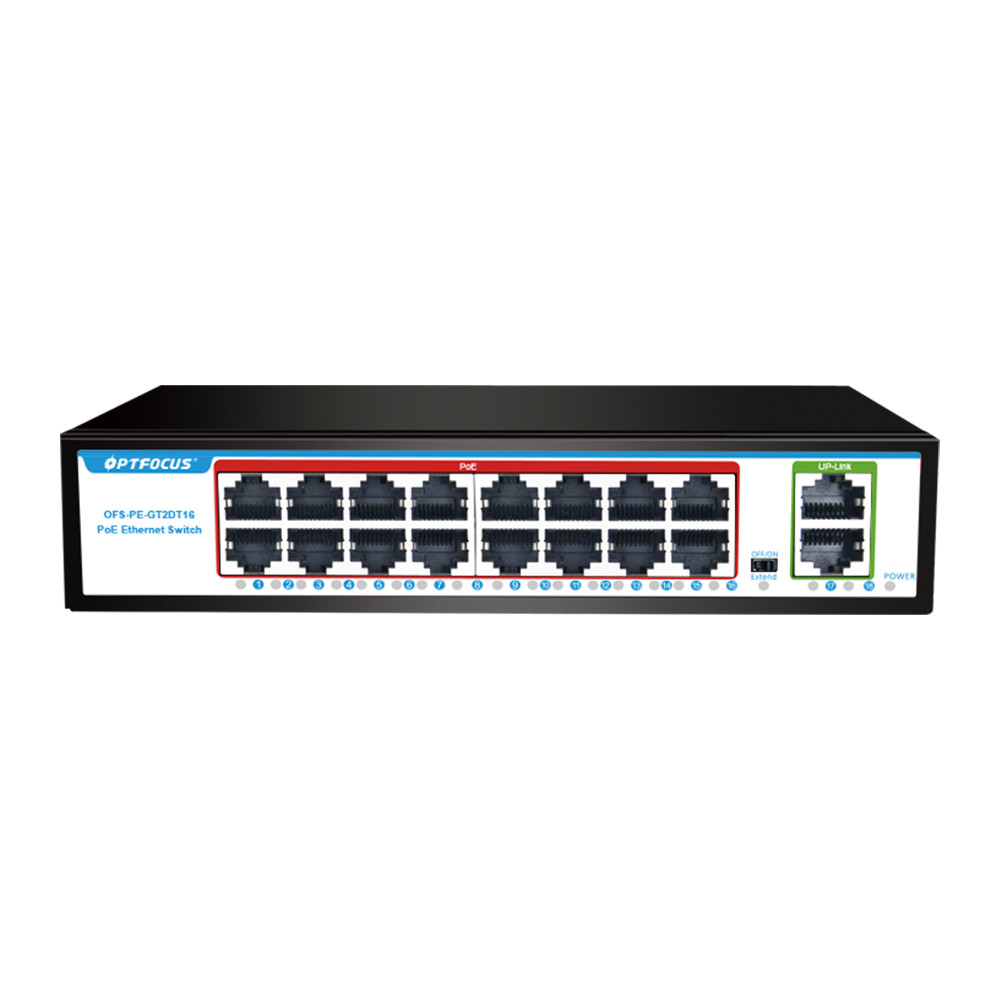

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
| Connector | 16*10/100mbps POE port,2*10/100/1000mbps UP-Link port |
| Power Supply Type | Build In, Both 1/2+,3/6- and 4/5+7/8- |
| PoE Output Power | 15.4W/30W |
| DATA PIN | 1/2+,3/6- |
| Network Medium | Cat5 (UTP) or more |
| Network Standards |
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
| PoE power | Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
| Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
| Address database Table Size | 2K MAC address entry |
| Buffer memory | 48Kb embedded memory per unit |
| Backboard Bandwidth | 8.8G |
| Network Latency | Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
| Input | 110V-240V |
| Overload current protection | Present |
| Casing | Metal |
| Installation | DESKTOP/Rack mounting |
| LED Indicators |
System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
| Operating temperature | -10-55℃(32-104℉) |
| Storage temperature | -40-70℃(14-158℉) |
| Operating humidity | 90% maximum relative humidity, non-condensing |
| Storage humidity | 95% maximum relative humidity, non-condensing |
| ISO | Manufactured in ISO9001 facility |
| Safety | CE |
| Dimensions | 312*185*46mm (L*W*H) |
| Weight | 1.9Kg |
| OFS-PE-GT2DT16 | 16*10/100mbps POE port,2*10/100/1000mbps UP-Link port,Built-in power supply |
